Preface

One of my first projects was building a nesting box with a camera which is publicly accessible via nestingbox.divisionby0.de. Since then it has bothered me that the stream could only be accessed via http and I did not have a TLS certificate to encrypt the stream. Today I took the time to change this.

Motion support for TLS

Motion is a program that monitors the video signal of one or more cameras and is able to detect movement for triggering events like sending an email or start recording a video. It's used as software on my nesting box Raspberry Pi to provide a video steam and offers TLS encryption since version 4.2 via stream_tls config parameter.

When enabling TLS webcontrol_cert and webcontrol_key have to be configured with a local certificate and private key file, but how to obtain these files?

Option 1: Self-Signed certificates

On first option is to create a self-signed certificate for usage with motion by executing the following command:

sudo openssl req -x509 -sha256 -nodes -days 356 -newkey rsa:2048 -keyout motion.key -outform pem -out motion.pem -subj "/CN=divisionby0.de"

As you can read in the docs this will create a self-signed certificate which is valid for 356 days and an unencrypted 2048-bit-RSA private key file motion.key as well as the certificate motion.pem. You are now able to refence these files in the config parameters mentioned above, but you will see a warning when accessing the stream as you are a using a self-signed certificate which can not be verifed and therefore your browser won't trust it.

If you only want to use TLS in the local network and there is a limited number of callers you may ignore this fact and use self-signed certificates.

Option 2: Signed certificates

There are several ways to create an official, verifiable certificate. As you may know, I use AWS for parts of this blog and it would be obvious to use the AWS Certificate Manager to create a certificate. But certificates issued by AWS Certificate Manager can only be used inside AWS and there is no option to export those certificates to use them on my Raspberry Pi with Motion.

That's why I decided to have the certificates created and signed with Let's Encrypt, a nonprofit Certificate Authorithy providing TLS cerritificates for free. Fortunately, there is also a Terraform provider (see vancluever/acme) to automate request and validation.

The provider uses the Automated Certificate Management Environment (ACME) in which clients autonomously register with the authority using their private key and respond to challenges by providing response data via HTTP or DNS over the domains for which the certificate is to be issued. This ensures that the requesting party has control over the domains and therefore the permission to request certificates.

My Terraform files are public accessible in the DivisionBy0-Infrastructure repository, the parts worth to mention are explained below.

provider "acme" {
  server_url = "https://acme-v02.api.letsencrypt.org/directory"
}

Tell the provider which server to use to create the certificate (use https://acme-staging-v02.api.letsencrypt.org/directory for testing purposes).

resource "tls_private_key" "private_key" {
  algorithm = "RSA"
}

Create a RSA private key file.

resource "acme_registration" "registration" {
  account_key_pem = tls_private_key.private_key.private_key_pem
  email_address   = "webmaster@${local.domainName}"
}

And use this file to create a registration at ACME.

resource "acme_certificate" "certificate" {
  account_key_pem           = acme_registration.registration.account_key_pem
  common_name               = aws_route53_zone.hosted_zone.name
  subject_alternative_names = ["*.${aws_route53_zone.hosted_zone.name}"]

  dns_challenge {
    provider = "route53"

    config = {
      AWS_HOSTED_ZONE_ID      = aws_route53_zone.hosted_zone.zone_id
      AWS_POLLING_INTERVAL    = 30
      AWS_PROPAGATION_TIMEOUT = 600
    }
  }
}

Create the ACME TLS certificate and verify domain ownership via DNS entries in Route53.

Note: The certificate creation took 14 minutes and I had to modify POLLING_INTERVAL and PROPAGATION_TIMEOUT not to run into timeouts.

resource "aws_s3_bucket" "certificate_bucket" {
  bucket = "lets-encrypt-certificate"

  server_side_encryption_configuration {
    rule {
      bucket_key_enabled = false
      apply_server_side_encryption_by_default {
        sse_algorithm = "AES256"
      }
    }
  }
}

resource "aws_s3_bucket_object" "certificate_artifacts_s3_objects" {
  for_each = toset(["certificate_pem", "issuer_pem", "private_key_pem"])

  bucket  = aws_s3_bucket.certificate_bucket.id
  key     = "ssl-certs/${each.key}"
  content = lookup(acme_certificate.certificate, "${each.key}")
}

Finally store the created files (certificate, private key and issuer) in a S3-Bucket.

Setting up Motion to use the certificate

Once you've downloaded the certificate_pem and private_key_pem transfer them into the /etc/motion folder and adapt the /etc/motion/motion.conf as follows:

# Enable/Disable SSL/TLS for the webcontrol port
webcontrol_tls on

# Full path to the certification file for SSL/TLS support
webcontrol_cert /etc/motion/certificate_pem

# Full path to the key file for SSL/TLS support
webcontrol_key /etc/motion/private_key_pem

# Enable/disable SSL/TLS for the stream port
stream_tls on

Restart motion sudo systemctl restart motion and the stream should be accessible via https. 🥳

Hint

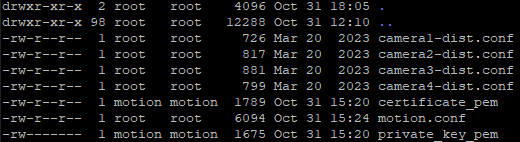

Based on you configuration it may be necessary, to ensure the motion service user has the appropriate permissions to read the the private key and certificate file.

If you are exposing the stream to the internet, do not forget to change the port mapping from port 80 to 443 in your router. Otherwise https request wont't routed to you streaming device.

Final words

Finally my nesting box stream is reachable via https which makes it much easier and safer to access (no manual change from https to http as your browser want's to open all URLs with https and no more warnings abour unsafe URLs). Not very complicated but updating motion, searching for suiablte solutions and trying different approached took quite a few hours.

Happy Halloween 🎃
